Connecting to Mainnet-Beta in IBRL Mode
Solana Mainnet Validators will complete connection to DoubleZero Mainnet-beta, which is detailed on this page. Note that connecting in IBRL mode does not require restarting any validator clients.
This is because your existing public IP is advertised to DoubleZero so that other users on DoubleZero will route via the DoubleZero network when sending to your validator. Likewise, the routes received from DoubleZero and installed in the kernel routing table cause your validator to send to other DoubleZero-enabled validators over the DoubleZero network.
1. Environment Configuration
Please follow the setup instructions before proceeding.
The last step in setup was to disconnect from the network. This is to ensure that only one tunnel is open on your machine to DoubleZero, and that tunnel is on the correct network.
To configure the DoubleZero Client CLI (doublezero) and daemon (doublezerod) to connect to DoubleZero testnet:
DESIRED_DOUBLEZERO_ENV=testnet \
&& sudo mkdir -p /etc/systemd/system/doublezerod.service.d \
&& echo -e "[Service]\nExecStart=\nExecStart=/usr/bin/doublezerod -sock-file /run/doublezerod/doublezerod.sock -env $DESIRED_DOUBLEZERO_ENV" | sudo tee /etc/systemd/system/doublezerod.service.d/override.conf > /dev/null \
&& sudo systemctl daemon-reload \
&& sudo systemctl restart doublezerod \
&& doublezero config set --env $DESIRED_DOUBLEZERO_ENV > /dev/null \
&& echo "✅ doublezerod configured for environment $DESIRED_DOUBLEZERO_ENV"
✅ doublezerod configured for environment testnet
After about 30 seconds you will see the DoubleZero devices available:
doublezero latency
doublezero latency
pubkey | code | ip | min | max | avg | reachable
6E1fuqbDBG5ejhYEGKHNkWG5mSTczjy4R77XCKEdUtpb | nyc-dz001 | 64.86.249.22 | 2.44ms | 2.63ms | 2.50ms | true
CT8mP6RUoRcAB67HjKV9am7SBTCpxaJEwfQrSjVLdZfD | lax-dz001 | 207.45.216.134 | 71.97ms | 72.01ms | 71.99ms | true
Cpt3doj17dCF6bEhvc7VeAuZbXLD88a1EboTyE8uj6ZL | lon-dz001 | 195.219.120.66 | 71.94ms | 72.08ms | 72.00ms | true
4Wr7PQr5kyqCNJo3RKa8675K7ZtQ6fBUeorcexgp49Zp | ams-dz001 | 195.219.138.50 | 76.55ms | 76.65ms | 76.61ms | true
29ghthsKeH2ZCUmN2sUvhJtpEXn2ZxqAuq4sZFBFZmEs | fra-dz001 | 195.219.220.58 | 83.01ms | 83.10ms | 83.05ms | true
hWffRFpLrsZoF5r9qJS6AL2D9TEmSvPUBEbDrLc111Y | fra-dz-001-x | 195.12.227.250 | 84.87ms | 84.91ms | 84.89ms | true
8jyamHfu3rumSEJt9YhtYw3J4a7aKeiztdqux17irGSj | prg-dz-001-x | 195.12.228.250 | 95.27ms | 95.30ms | 95.29ms | true
5tqXoiQtZmuL6CjhgAC6vA49JRUsgB9Gsqh4fNjEhftU | tyo-dz001 | 180.87.154.78 | 180.96ms | 181.08ms | 181.02ms | true
D3ZjDiLzvrGi5NJGzmM7b3YZg6e2DrUcBCQznJr3KfC8 | sin-dz001 | 180.87.102.98 | 220.87ms | 221.14ms | 220.97ms | true

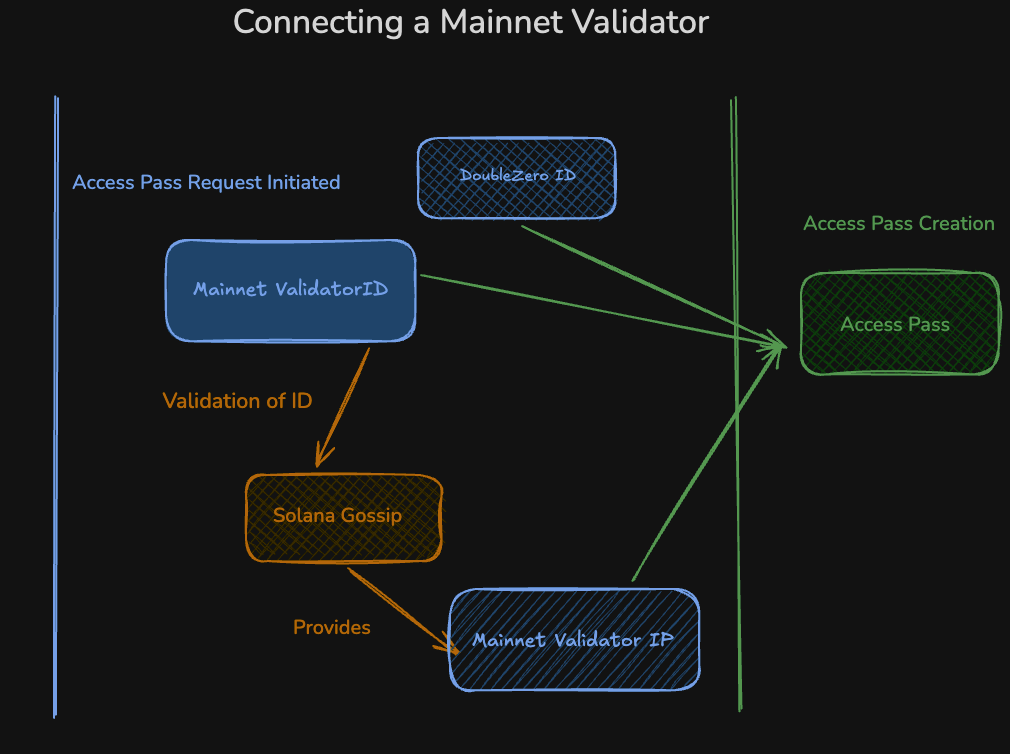

2. Attest Validator Ownership
With your DoubleZero Enviroment set, it is now time to attest to your Validator Ownership.
In order to accomplish this you will first determine the Solana Validator ID, then use the Solana Validator ID, together with the DoubleZero ID created during setup, to sign an off-chain transaction. This process only verifies ownership of the validator specified in the command.
Switching to the sol User
Before generating the validator ownership signature, you must switch to the sol user (or the user you normally use to run the validator):
sudo su - sol
This is required because the validator's Identity key (validator-keypair.json) is usually stored under the sol user account. Running the command as sol ensures:
- You have permissions to access to the
validator-keypair.json. - The signature is generated using the appropriate key that your Solana validator uses.
This step only requires you to sign a message with your validator Identity to prove ownership.
Identify the Pubkey from your validator Identity
You may only create an access pass for the Validator Identity which is in gossip on the server requesting the access pass. To connect your primary server, use the Validator Identity of your main validator. To connect a backup server, use the Validator Identity configured on the backup server.
solana address -k path/to/validator-keypair.json
Note
Save the output of this Signature for step 6
Output:
ValidatorIdentity111111111111111111111111111
Use the sign-offchain-message command to prove you are the owner of the validator.
solana sign-offchain-message -k path/to/validator-keypair.json service_key=YourDoubleZeroAddress11111111111111111111111111111
Output:
Signature111111rrNykTByK2DgJET3U6MdjSa7xgFivS9AHyhdSG6AbYTeczUNJSjYPwBGqpmNGkoWk9NvS3W7
Exit the Validator User
Exit the sol user session (or the user used to run the validator):
exit
3. Initiate a Connection Request in DoubleZero
Use the request-solana-validator-access command to create an account on Solana for the connection request. The DoubleZero Sentinel agent detects the new account, validates its identity and signature, and creates the access pass in DoubleZero so the server can establish a connection.
The example is for Solana Testnet. For Solana Mainnet-beta, change the testnet flag to mainnet-beta
Check your Solana Balance
solana balance -u testnet
Use the node ID, DoubleZeroID, and signature.
Note
In this example we use -k /home/user/.config/solana/id.json to find the validator Identity. Use the appropriate location for your local deployment.
doublezero-solana passport request-solana-validator-access -u testnet \
-k /home/user/.config/solana/id.json \
--node-id ValidatorIdentity111111111111111111111111111 \
--signature Signature111111rrNykTByK2DgJET3U6MdjSa7xgFivS9AHyhdSG6AbYTeczUNJSjYPwBGqpmNGkoWk9NvS3W7 \
YourDoubleZeroAddress11111111111111111111111111111
Output:
Request Solana validator access: Signature2222222222VaB8FMqM2wEBXyV5THpKRXWrPtDQxmTjHJHiAWteVYTsc7Gjz4hdXxvYoZXGeHkrEayp
4. Connect in IBRL Mode
On the server, with the user which will connect to DoubleZero, run the connect command to establish the connection to DoubleZero.
doublezero connect ibrl
You should see output indicating provisioning, such as:
DoubleZero Service Provisioning
🔗 Start Provisioning User...
Public IP detected: 137.184.101.183 - If you want to use a different IP, you can specify it with `--client-ip x.x.x.x`
🔍 Provisioning User for IP: 137.184.101.183
User account created
Connected to device: nyc-dz001
The user has been successfully activated
Service provisioned with status: ok
✅ User Provisioned
Verify your connection:
doublezero status
Output:
Tunnel status | Last Session Update | Tunnel Name | Tunnel src | Tunnel dst | DoubleZero IP | User Type
up | 2025-09-10 12:16:03 UTC | doublezero0 | 137.184.101.183 | 64.86.249.22 | 137.184.101.183 | IBRL
up means you are successfully connected.
You will be able to view routes propagated by other users on DoubleZero by running:
ip route
default via 149.28.38.1 dev enp1s0 proto dhcp src 149.28.38.64 metric 100
5.39.216.186 via 169.254.0.68 dev doublezero0 proto bgp src 149.28.38.64
5.39.251.201 via 169.254.0.68 dev doublezero0 proto bgp src 149.28.38.64
5.39.251.202 via 169.254.0.68 dev doublezero0 proto bgp src 149.28.38.64
...
